Static Mixing Nozzle Manufacturer for 2K Adhesives
Bayonet, bell inlet, integral nut and threaded static mixers for epoxy, polyurethane, silicone and other two-component adhesives. OEM sizes and bulk supply available.
- OEM & Custom Sizes
- Factory Direct Supply
- Free Samples Available
A-Series
Bayonet Static Mixers
- bayonet static mixer
- bayonet mixing nozzle
- 2K cartridge mixer
B-Series
Bell Inlet Static Mixers
- bell inlet static mixer
- bell mixing nozzle
- two-component adhesive mixer
C-Series
Threaded Static Mixers
- integral nut static mixer
- threaded static mixer
- threaded mixing nozzle
D-Series
Helical / Spiral Static Mixers
- helical static mixer
- spiral static mixer
- spiral mixing nozzle
- two-component adhesive mixer
E-Mixing Ratio
Quadro Static Mixers
- quadro static mixer
- quadro mixing nozzle
- square static mixer
- 2K adhesive mixer
F-Series
Dynamic Mixing Nozzles
- Fast & Uniform Mixing
- Suitable for Automated Dispensing
- Multiple Sizes & Connections
- OEM & Custom Options
Product Specifications
Choose the right static mixer by connection type, mixing element, cartridge system and mixing ratio.

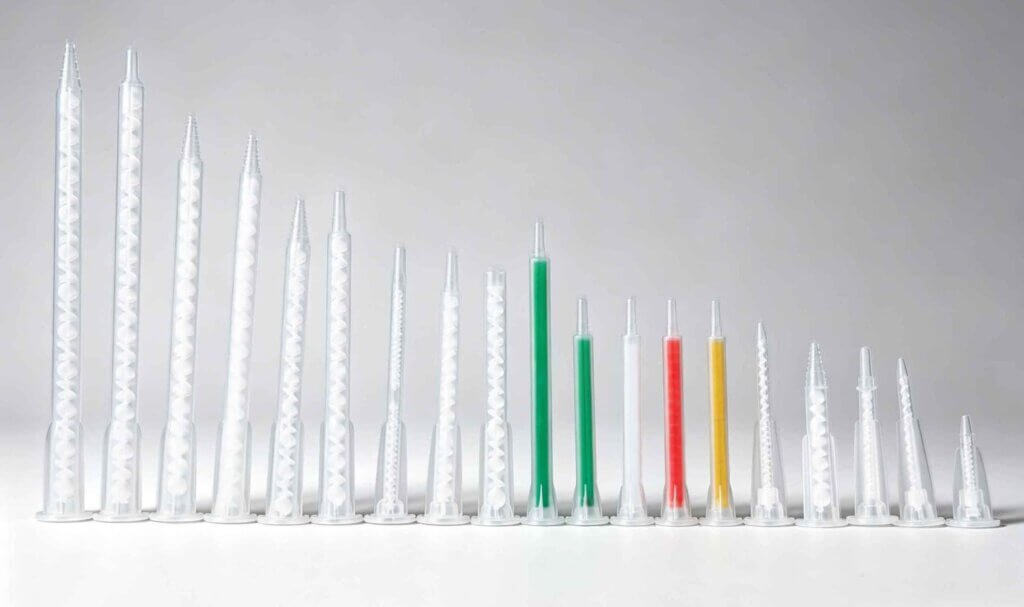

A-Series — Bayonet Static Mixers
Bayonet Connection Detail
Compatible with bayonet-style cartridges for two-component adhesives. Available in multiple sizes, outlet diameters, and element counts.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| A-3.0-07-S-WH | 7 | 3.00 | 4.60 | 33.20 | 1.00 |
| A-3.0-17-S-WH | 17 | 3.00 | 4.60 | 62.20 | 1.00 |
| A-5.4-07-T-WH | 7 | 5.50 | 7.04 | 56.00 | 1.40 |
| A-5.4-17-L-WH | 17 | 5.50 | 7.55 | 106.00 | 1.30 |
| A-5.4-17-T-WH | 17 | 5.45 | 7.65 | 103.37 | 1.50 |
| A-5.4-21-L-WH | 21 | 5.44 | 7.64 | 122.73 | 1.46 |
| A-6.3-12-L-WH | 12 | 6.38 | 8.62 | 98.00 | 1.54 |
| A-6.3-17-L-WH | 17 | 6.38 | 8.48 | 128.86 | 1.54 |
| A-6.3-21-L-WH | 21 | 6.30 | 8.70 | 151.50 | 1.50 |
| A-6.3-21-T-WH | 21 | 6.30 | 8.70 | 153.00 | 1.50 |
| A-06-16-L-GD | 16 | 5.58 | 7.66 | 84.20 | 1.88 |
| A-06-16-L-GN-02 | 16 | 5.58 | 7.66 | 84.20 | 1.88 |
| A-06-16-L-LY | 16 | 5.58 | 7.66 | 84.20 | 1.88 |
| A-06-16-L-RD | 16 | 5.58 | 7.66 | 84.20 | 1.88 |
| A-06-24-L-GN | 24 | 5.41 | 7.72 | 113.17 | 1.81 |
| A-03-17-JC | 49 | 3.10 | 5.10 | 153.00 | 1.20 |
| A-03-24 | 24 | 3.18 | 4.71 | 87.25 | 1.75 |

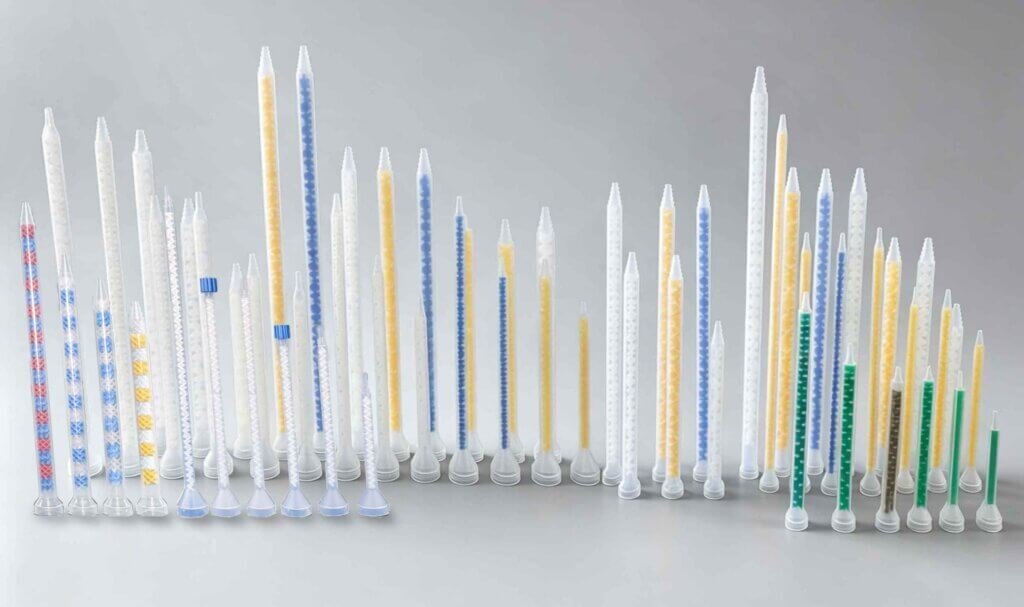

B-Series — Bell Inlet Static Mixers
Bell Inlet Connection Detail
Wide bell-shaped inlet designed for smooth material entry and secure connection with compatible two-component dispensing systems.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| B-10-19-S-BK | 19 | 10.89 | 13.10 | 253.63 | 6.69 |
| B-05-18-T-WH | 18 | 5.00 | 7.96 | 121.60 | 1.49 |
| B-05-24-T-WH | 24 | 5.00 | 8.02 | 149.96 | 1.26 |
| B-05-32-T-WH | 32 | 5.00 | 8.04 | 188.62 | 1.26 |
| B-06-32-L-WH | 32 | 6.39 | 10.09 | 234.00 | 1.68 |
| B-08-18-T-WH-02 | 18 | 8.00 | 12.00 | 177.00 | 2.40 |
| B-08-24-T-WH | 24 | 7.75 | 11.86 | 223.00 | 2.55 |
| B-08-32-T-WH-01 | 32 | 7.83 | 12.10 | 287.00 | 2.57 |
| B-10-12-T-WH | 12 | 9.98 | 13.95 | 155.00 | 2.94 |
| B-10-32-T-BU-02 | 32 | 9.85 | 14.00 | 353.00 | 3.00 |
| B-10-32-T-WH-01 | 32 | 9.80 | 13.98 | 352.00 | 2.90 |
| B-13-18-T-WH | 18 | 12.57 | 17.10 | 232.00 | 4.25 |
| B-13-24-T-WH | 24 | 12.54 | 16.84 | 293.00 | 3.97 |
| B-13-32-T-WH | 32 | 12.36 | 17.07 | 379.00 | 4.26 |
| B-13-36-T-WH | 36 | 12.36 | 16.46 | 420.00 | 5.14 |
| B-10-24-T-RD | 24 | 9.90 | 13.88 | 275.00 | 3.03 |
| B-06-16-L-GN | 16 | 5.58 | 7.72 | 95.28 | 1.88 |
| B-06-24-L-GN | 24 | 5.35 | 7.70 | 128.18 | 1.49 |
| B-07-24-T-GD | 24 | 7.62 | 9.82 | 130.14 | 2.50 |
| B-07-24-T-GN | 24 | 7.62 | 9.82 | 130.14 | 2.50 |
| B-08-24-T-GN | 24 | 8.88 | 11.92 | 149.67 | 3.61 |
| B-08-32-T-GN-02 | 32 | 8.78 | 11.50 | 186.75 | 3.57 |
| B-08-32-T-GN | 32 | 8.78 | 11.50 | 186.75 | 3.57 |
| B-10-24-T-BU | 24 | 9.80 | 14.00 | 274.49 | 3.00 |
| B-9-12-T | 12 | 9.40 | 12.63 | 145.14 | 2.96 |
| B-9-16-T | 16 | 9.40 | 12.55 | 183.57 | 2.98 |
| B-9-20-T | 20 | 9.40 | 12.55 | 219.93 | 2.99 |
| B-9-21-T | 21 | 9.40 | 12.56 | 219.54 | 2.99 |
| B-04-16-L-WH | 16 | 4.78 | 7.47 | 99.00 | 1.74 |
| B-04-24-L-WH | 24 | 4.80 | 7.28 | 131.00 | 1.75 |
| B-04-32-L-WH | 32 | 4.80 | 7.32 | 164.80 | 1.78 |
| B-04-32-LL-WH | 32 | 4.80 | 7.32 | 164.80 | 1.78 |
| B-04-48-LL-WH | 48 | 4.76 | 7.34 | 228.44 | 1.72 |
| B-06-16-L-WH | 16 | 6.26 | 9.09 | 138.73 | 2.20 |
| B-06-48-L-WH | 48 | 6.26 | 9.43 | 309.52 | 2.10 |
| B-06-48-LL-WH | 48 | 6.26 | 9.43 | 309.52 | 2.10 |
| B-09-24-T-WH | 24 | 9.08 | 12.78 | 230.58 | 3.04 |
| B-20-23-T-BLY-PA | 23 | 19.95 | 24.56 | 432.00 | 7.05 |
| B-20-23-T-WH | 23 | 19.95 | 24.56 | 437.00 | 7.05 |

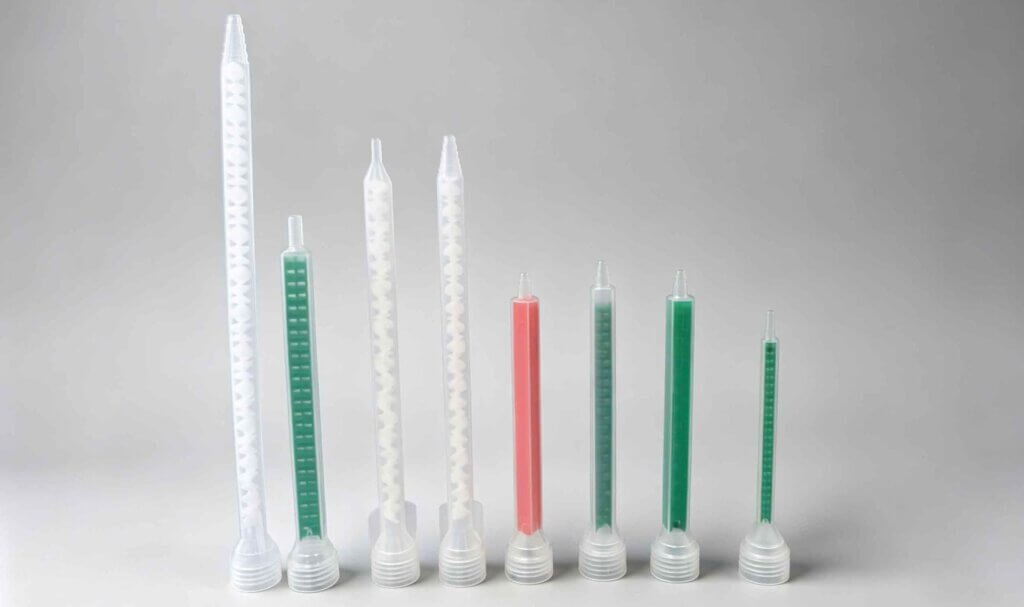

C-Series — Threaded Static Mixers
Threaded Connection Detail
Threaded or integral-nut connection provides a secure fit with compatible cartridges and dispensing equipment for stable 2K adhesive mixing.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| C-10-18-L-WH | 18 | 9.75 | 13.38 | 255.00 | 2.10 |
| C-10-18-S-RD | 18 | 9.82 | 13.63 | 241.00 | 1.30 |
| C-10-18-T-WH | 18 | 9.82 | 13.76 | 225.00 | 2.88 |
| C-10-24-L-WH | 24 | 9.75 | 13.38 | 282.00 | 2.10 |
| C-10-24-T-WH | 24 | 9.73 | 13.33 | 281.00 | 2.75 |
| C-08-20-L-GN | 20 | 8.78 | 11.50 | 142.50 | 4.50 |
| C-08-24-S-GN | 24 | 8.78 | 12.03 | 176.90 | 2.45 |
| C-08-24-T-GN | 24 | 7.97 | 11.58 | 159.00 | 3.15 |
| C-08-24-T-RD | 24 | 7.97 | 11.58 | 159.00 | 3.15 |
| C-10-24-L-GN | 24 | 11.01 | 14.12 | 190.80 | 5.08 |
| C-F0624LY | 24 | 5.38 | 7.68 | 139.78 | 1.67 |
D-Series — Helical / Spiral Static Mixers
Helical Mixing Element Detail
Alternating helical elements repeatedly divide and recombine two-component materials to achieve consistent and uniform adhesive mixing.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| D-06-24-T-GN | 24 | 6.00 | 9.77 | 194.92 | 1.91 |
| D-08-18-T-WH | 18 | 8.00 | 11.83 | 186.86 | 2.58 |
| D-10-18-T-WH | 18 | 10.00 | 14.00 | 222.56 | 3.20 |
| D-10-24-T-WH | 24 | 10.00 | 13.88 | 280.56 | 3.18 |
| D-06-24-T-RD | 24 | 6.00 | 9.77 | 194.58 | 1.88 |
| D-08-18-T-RD | 18 | 8.00 | 11.83 | 186.99 | 2.60 |
| D-10-18-T-RD | 18 | 10.00 | 13.89 | 222.44 | 3.04 |
| D-10-24-T-RD | 24 | 10.00 | 13.81 | 280.62 | 3.05 |
| D-13-18-T-RD | 18 | 12.47 | 16.86 | 234.61 | 3.99 |
| D-05-16-L-GY | 16 | 5.00 | 7.62 | 100.11 | 2.09 |
| D-05-24-L | 24 | 5.00 | 7.54 | 130.85 | 1.66 |
| D-10-24-T-GN | 24 | 10.00 | 14.05 | 180.55 | 3.60 |
| D-05-16-L-GY | 16 | 5.00 | 7.60 | 100.07 | 1.97 |
| D-05-24-L | 24 | 5.00 | 7.52 | 130.73 | 1.70 |
| D-07-24-T-GN | 24 | 7.65 | 9.87 | 135.84 | 3.06 |
| D-08-24-T-GN-01 | 24 | 8.70 | 11.30 | 155.13 | 3.02 |
| D-10-24-T-GN | 24 | 10.00 | 14.20 | 180.48 | 3.60 |

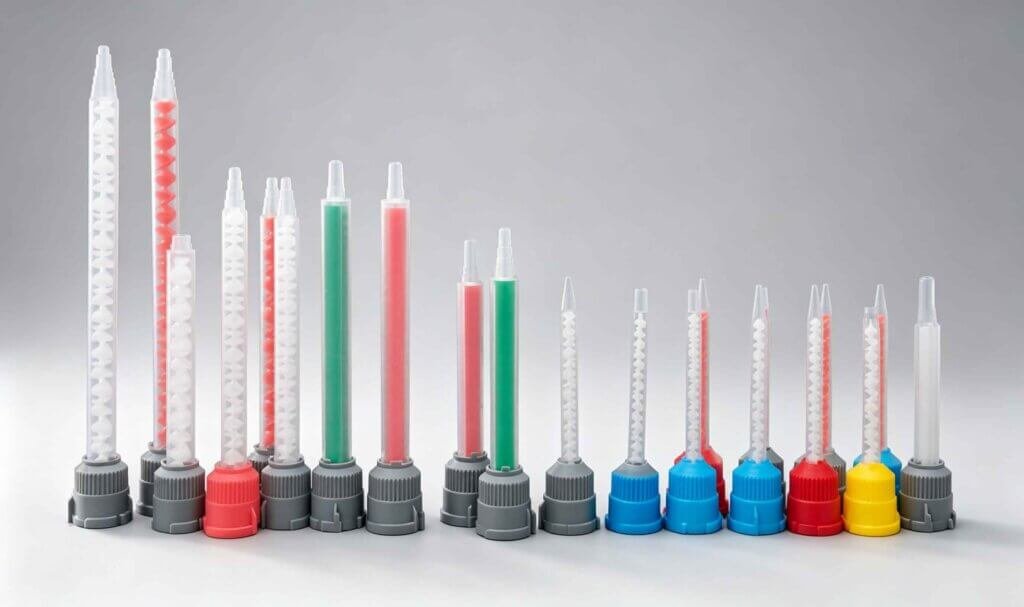

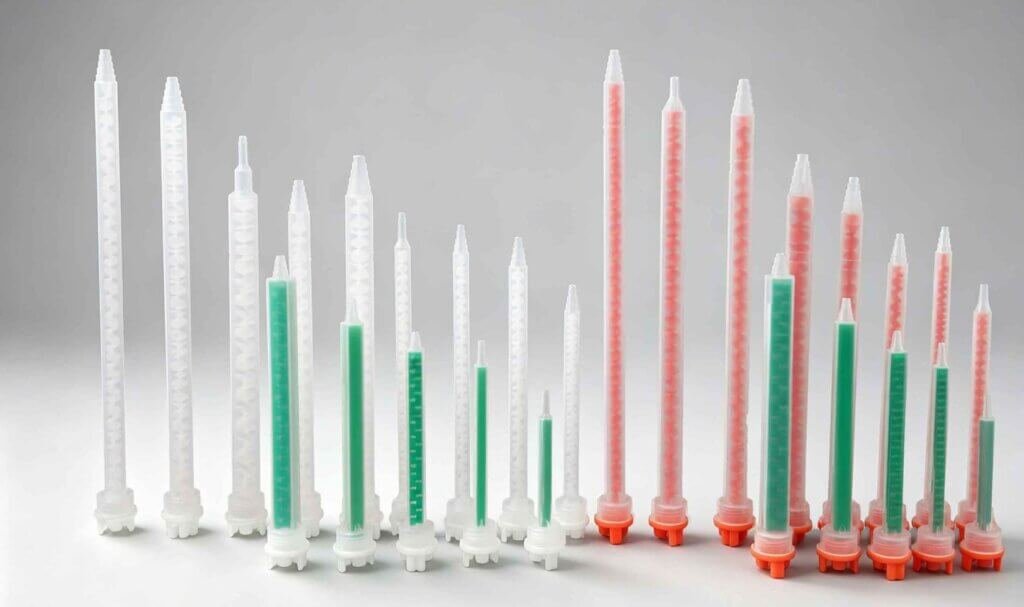

E-Mixing Ratio / Quadro
Quadro Mixing Element Detail
Compact square mixing elements provide efficient material division and recombination for uniform mixing in a shorter mixer design.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| E-3.2-16-D-BU | 16 | 3.20 | 4.80 | 74.63 | 1.86 |
| E-3.2-16-D-GY | 16 | 3.20 | 4.80 | 74.63 | 1.86 |
| E-3.2-16-S-BU | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-3.2-16-S-GY | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-3.2-16-S-RD | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-5.4-16-T-GY | 16 | 5.34 | 7.60 | 111.67 | 1.20 |
| E-5.4-16-T-PK | 16 | 5.34 | 7.60 | 111.67 | 1.20 |
| E-6.5-12-L-GY | 12 | 7.70 | 8.43 | 95.98 | 3.58 |
| E-6.5-20-T-GY | 20 | 6.18 | 8.28 | 155.60 | 1.57 |
| E-3.2-16-D-GY-02 | 16 | 3.20 | 4.80 | 74.63 | 1.86 |
| E-3.2-16-S-BU | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-3.2-16-S-GY | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-3.2-16-S-RD | 16 | 3.20 | 4.80 | 76.85 | 1.00 |
| E-5.4-16-T-GY | 16 | 5.34 | 7.60 | 111.67 | 1.20 |
| E-5.4-16-T-PK | 16 | 5.34 | 7.60 | 111.67 | 1.20 |
| E-6.5-20-T-GY | 20 | 6.18 | 8.28 | 155.60 | 1.57 |
| E-05-16-L-GY | 16 | 5.34 | 7.60 | 83.30 | 1.77 |
| E-05-24-L-GY | 24 | 5.40 | 6.98 | 121.74 | 1.78 |
| E-05-16-L-GY | 16 | 5.34 | 7.60 | 83.30 | 1.77 |
| E-05-24-L-GY | 24 | 5.40 | 6.98 | 121.74 | 1.78 |

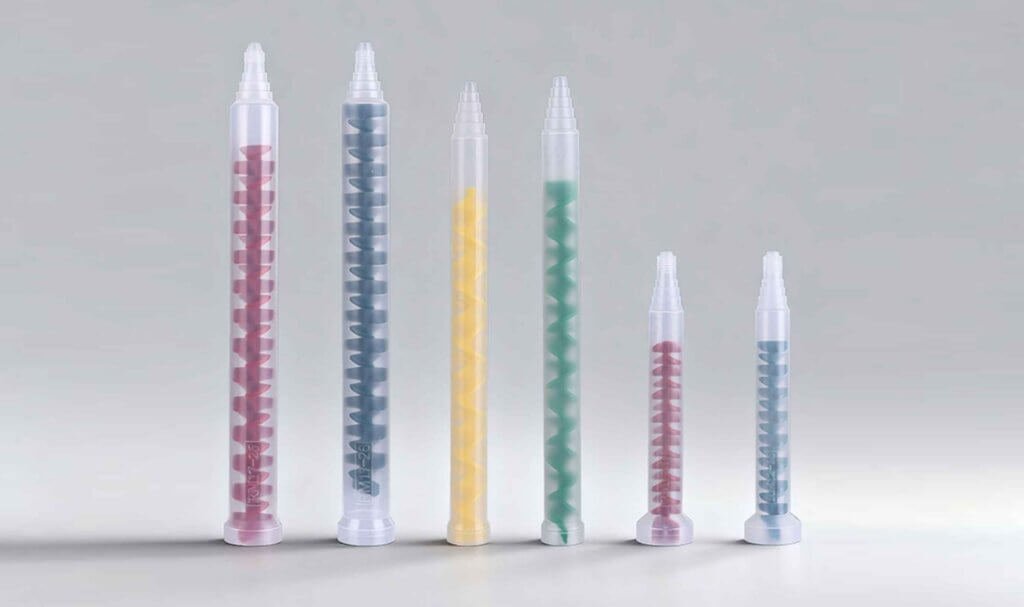

F-Dynamic Mixing Nozzles

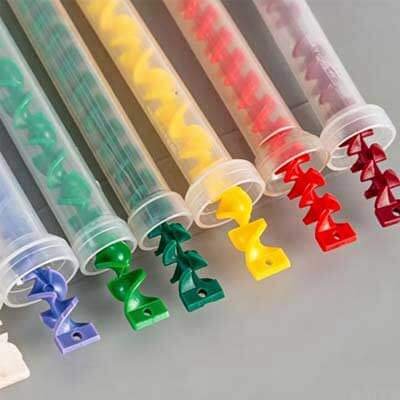

Dynamic Mixer Connection Detail
Rotating mixing elements provide rapid and uniform blending for automated two-component adhesive dispensing applications.
| Name | Elements | Inner Dia. (mm) | Outer Dia. (mm) | Overall Length (mm) | Outlet Dia. (mm) |
|---|---|---|---|---|---|
| F-16.7-10-12-G-GN | 12 | 9.68 | 13.79 | 155.64 | 3.08 |
| F-16.7-13-12-T-YE | 12 | 12.98 | 16.90 | 197.73 | 4.06 |
| F-22-12-16-G-RD | 16 | 12.49 | 15.70 | 127.18 | 4.60 |
| F-22-12-26-G-GN | 26 | 12.50 | 15.60 | 178.79 | 4.41 |
| F-22-12-26-G-RD | 26 | 12.50 | 15.60 | 178.79 | 4.41 |
| F-22-17-16-G-RD | 16 | 17.03 | 21.10 | 152.06 | 4.94 |
| F-22-17-26-G-GN | 26 | 17.04 | 21.09 | 216.73 | 4.95 |
| F-22-17-26-G-RD | 26 | 17.04 | 21.09 | 216.73 | 4.95 |
| F-RS0916 | 16 | 10.16 | 12.86 | 103.30 | 2.92 |
Applications
Our static mixing nozzles are designed for dispensing and mixingtwo-component adhesives, including epoxy, polyurethane, siliconeand acrylic systems. Multiple mixer sizes, element designs andconnection styles are available for electronics, automotive,construction, lighting, furniture and general industrialmanufacturing applications.

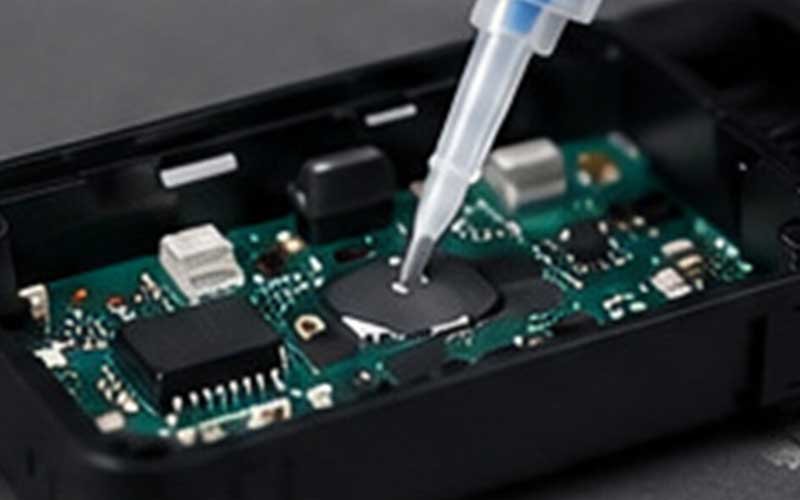

Epoxy Adhesive Mixing
Our epoxy mixing nozzles and epoxy static mixers provide consistent blending for two-part epoxy systems used in bonding, potting. encapsulation and structural assembly.

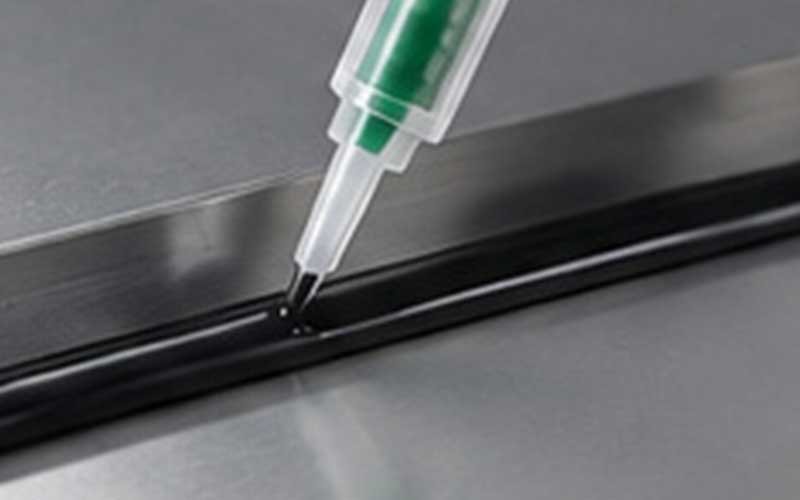

Polyurethane Adhesive Mixing
PU mixing nozzles and polyurethane static mixers are suitable for two-component polyurethane adhesives used in sealing, bonding, casting and assembly applications.

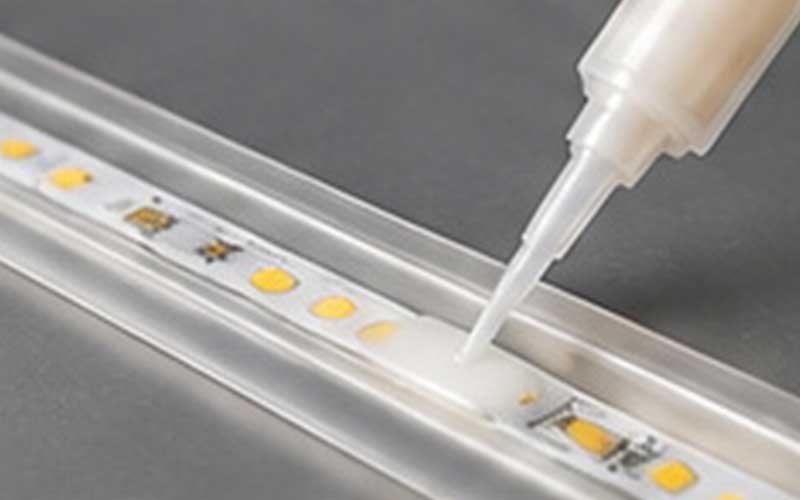

Silicone Adhesive Mixing
Silicone mixing nozzles provide uniform mixing for two-component silicone materials used in sealing, potting, encapsulation and precision dispensing applications.

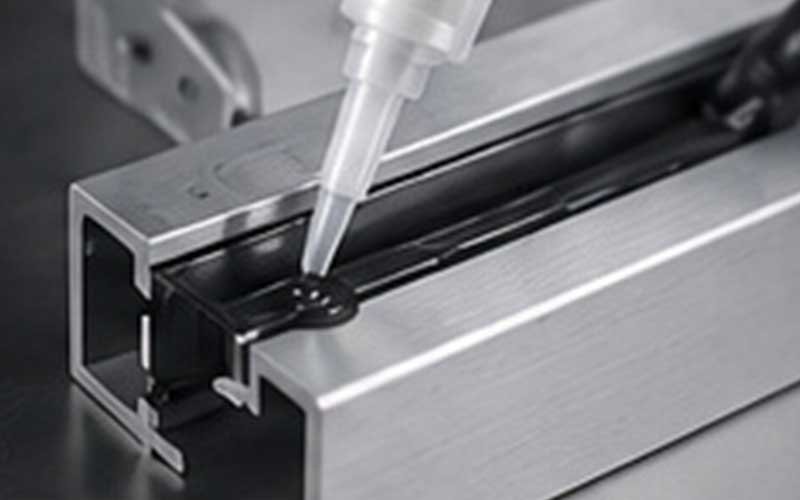

Acrylic Adhesive Mixing
Acrylic adhesive static mixers provide efficient mixing for two-component acrylic systems used in structural bonding, metal assembly and industrial manufacturing.
Industries We Serve
Electronics & Electrical
Potting, encapsulation
and component bonding
Automotive & Transportation
Structural bonding, sealing
and assembly
LED & Lighting
Potting, thermal management
and sealing
Construction& & Building
Anchoring, bonding
and joint sealing
Furniture& Woodworking
Assembly and structural
dhesive bonding
General Industrial Manufacturing
Bonding, casting, sealing
and dispensing
Electronics
Automotive
Industrial Assembly
Composite Bonding
Construction
Filters
General Manufacturing
LED Lighting
Electrical Components
Industrial Sealing
Metal Fabrication
Transportation

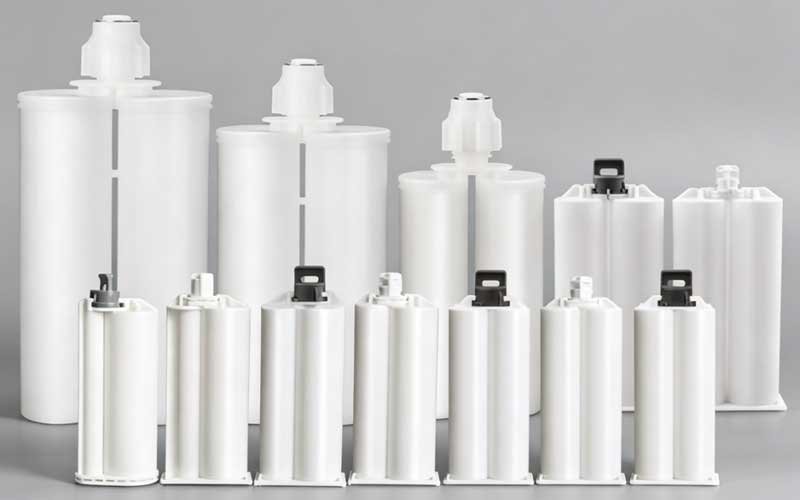

Compatible Cartridge Systems
Cartridge Sizes: 14–1500 mL | Mix Ratios: 1:1 / 2:1 / 3:1 / 4:1 / 10:1
Our static mixing nozzles are compatible with most popular two-component cartridge systems and dispensing equipment.
- Bayonet/ Snap-on
- Bell Inlet
- Threaded / Integral Nut
- Suitable for various cartridge systems
Why Choose Us
We are a professional manufacturer of static mixingnozzles with strong production capability and strictquality control.
research and development
.
Advanced Production Equipment
Automated Production Line
Strict Quality Control
OEM & Custom Solutions
Support custom sizes, ratios,
colors and packaging.
Free Samples Available
Test quality and compatibility
before placing bulk orders.
Professional Support
Quick response and technical
support for your projects.
Fast & Reliable Delivery
Stable lead time and on-time
delivery worldwide.
Static Mixing Nozzle FAQ
1. What is a static mixing nozzle?
A static mixing nozzle is a disposable mixer used to combine two-component materials such as epoxy, polyurethane, silicone, and acrylic adhesives. The materials are mixed as they pass through fixed internal elements, without any moving parts.
2. How do I choose the right static mixing nozzle?
Choose the mixer based on your cartridge type, mixing ratio, connection style, material viscosity, required flow rate, mixer diameter, number of elements, and outlet size.
3. What is the difference between a helical mixer and a Quadro mixer?
Helical mixers use spiral elements to repeatedly divide and recombine the two materials. Quadro mixers use a compact square mixing structure designed for efficient mixing in a shorter overall length.
4. What is the difference between bayonet, bell inlet, and threaded static mixers?
These terms mainly describe the inlet connection. Bayonet mixers use a twist-lock connection, bell inlet mixers have a wide bell-shaped inlet, and threaded or integral-nut mixers use a screw-on connection for secure attachment.
5. What mixing ratios are available?
Common options include 1:1, 2:1, 4:1, and 10:1, depending on the cartridge and dispensing system. Other configurations may also be available.
6. How many mixing elements do I need?
The required number of elements depends on the material viscosity, mixing ratio, flow rate, and required mixing quality. More elements generally provide more mixing stages but can also increase dispensing resistance.
7. Are your static mixing nozzles compatible with different cartridge systems?
Yes, multiple connection styles and sizes are available for different two-component cartridge and dispensing systems. Compatibility should be confirmed by cartridge interface, ratio, and dimensions.
8. Can you provide replacement or compatible static mixers for existing systems?
Compatible options are available for many commonly used 2K dispensing systems. Send us your current mixer model, cartridge type, or photos and dimensions so we can help identify a suitable option.
9. Can you customize static mixing nozzles?
Yes. OEM and custom options can include mixer length, diameter, number of elements, outlet design, connection style, color, and packaging, depending on the project requirements.
10. What information should I provide when requesting a mixer recommendation?
Please provide your adhesive type, mixing ratio, cartridge size, connection style, viscosity if known, desired flow rate, and your current mixer model or photos.
Request Free Samples Today
Fast response within 12-24 hours. Custom options available.
Email Us
lucy@adhesivepacks.com
Call Us
+86 17887204364
Contact Us
We typically respond with in 12-24 hours.
